Visual detail browser
Browse drafting details through a visual catalogue with titles, thumbnails and structured information.
DRAFTING RESOURCES
TURNER+ Drafting LibraryFind the right detail.
Keep the project moving.
A visual, searchable library for finding and placing drafting details in Revit, while keeping every project copy connected to its source and revision.
Planned productRevit 2025 targetWindows x64 · .NET 8
CTRL K
DETAILS5 shown

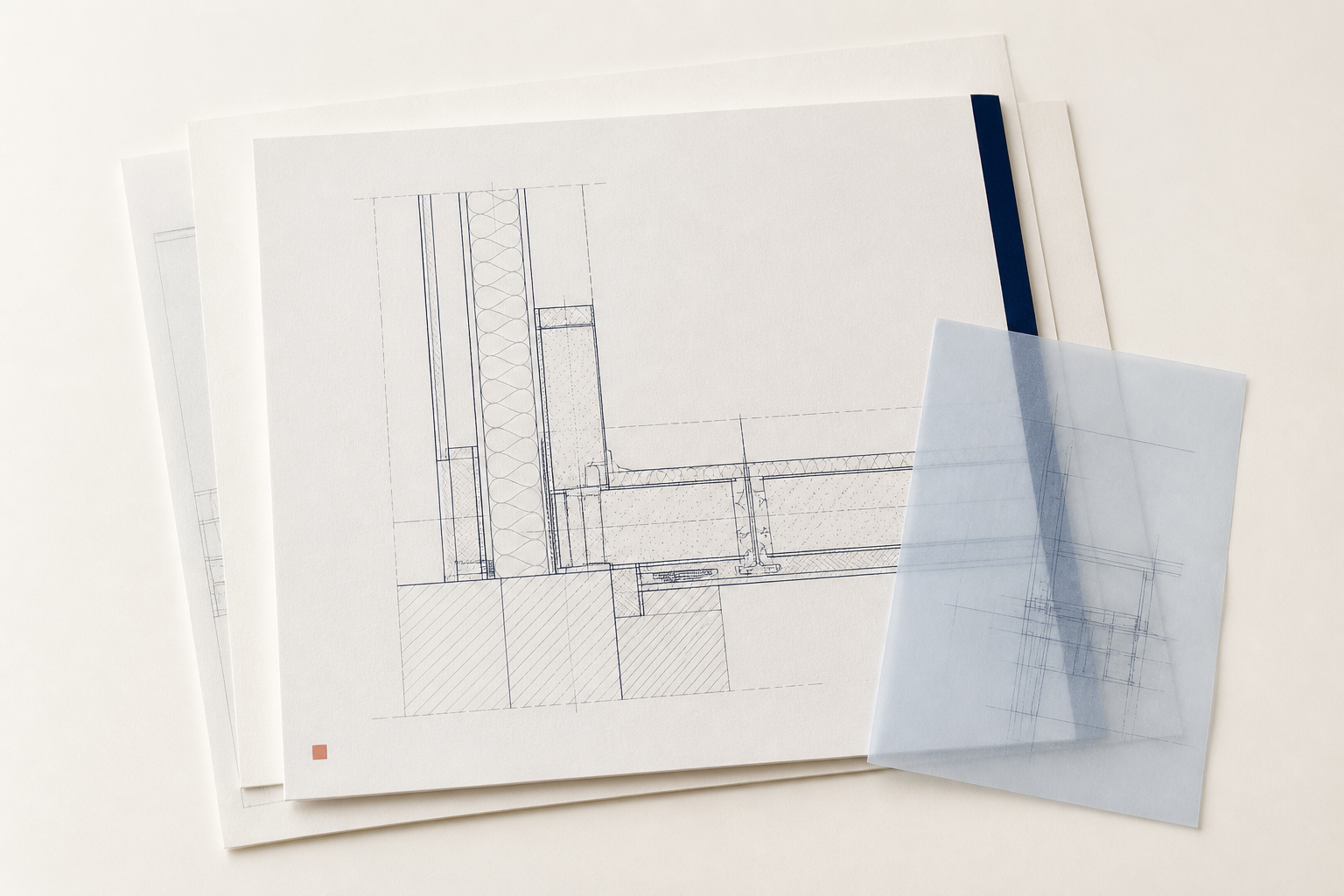

DL-101Wall baseCurrent
TURNER+ DETAIL PREVIEW
1:5
1:5- CATEGORY
- Envelope
- SYSTEM
- Masonry
- SCALE
- 1:5
- REVISION
- Master 07
Interactive browser simulation based on the current Drafting Library window. Example records only.
DESIGNED FOR DETAIL WORK
From the library.
Into the project.
Drafting Library brings external Revit drafting details into one clear, searchable workflow. Preview the detail, check its information and place it into the active project without repeatedly opening and navigating source files.
Once a detail is placed, Drafting Library remembers where it came from and which revision was used. Project Intelligence then helps identify details that are current, outdated, superseded or in need of review.
KEY FEATURES
Everything in view.
Nothing lost in transit.
Focused search
Search and filter by category, construction system, function, scale and library status.
Direct Revit placement
Place selected drafting-view content into the active project from within the browser.
Source tracking
Inserted details retain information about their originating library, source view and master revision.
Project Intelligence
See whether each detail is not yet in the project, current, ready for an update, superseded or awaiting revision review.
Controlled updates
Refresh an outdated detail from its master source while preserving the existing Revit view and its sheet placements.
Thumbnail workflows
Generate and refresh visual previews directly from the master drafting libraries.
WHY IT MATTERS
Less searching.
More resolving.
Drafting Library reduces the friction between finding a standard detail and using it confidently. It gives project teams a clearer view of what is available, what has already been used and whether the project copy still reflects the master library.
CURRENT DEVELOPMENT TARGET
Taking shape
inside Revit.
Revit is required and is not included. Compatibility and the controlled-update workflow remain subject to final in-Revit testing before release.
- Application
- Revit 2025
- Operating environment
- Windows x64 · .NET 8
- Release status
- Planned product · Internal validation
AVAILABILITY
Taking shape
in practice.
Drafting Library is currently being developed and validated as an individual TURNER+ product. Public purchasing and downloads are not yet open.
- Price
- Not announced
- Public release
- Not announced
